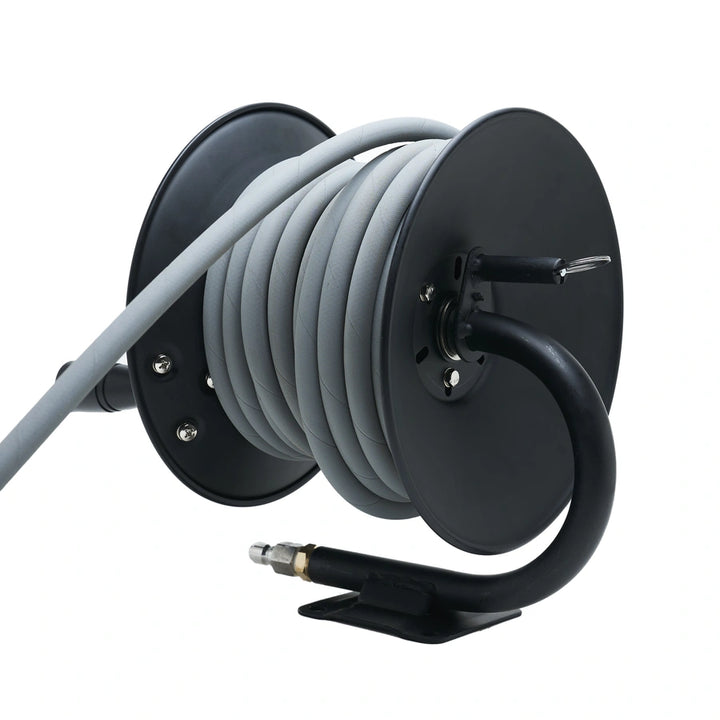

MTM Hydro Premium KobraJet Hose Reel Kit 50' - No Mark Grey

SKU: 43.5032
Sale price$599.98
FAST PREE SHIPPING

On Orders Over $99

BEST PRICE GUARANTEE
SECURE PAYMENT

Visa, Mastercard, Paypal


This all-inclusive hose reel kit has everything you need including installed fittings and assembly! The Premium 50' Hose Reel Kit includes a 50' hose reel, a 50' KobraJet grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel quick connects, and a high-grade brass swivel that is recognized to outperform other competing models.

Specifications

  • 50' Hose Reel
  • Supports 100' of 3/8" (ID) pressure washing hose
  • Mounted Weight of 19lbs.
  • 4,000 PSI Max
  • 140° Max Temp

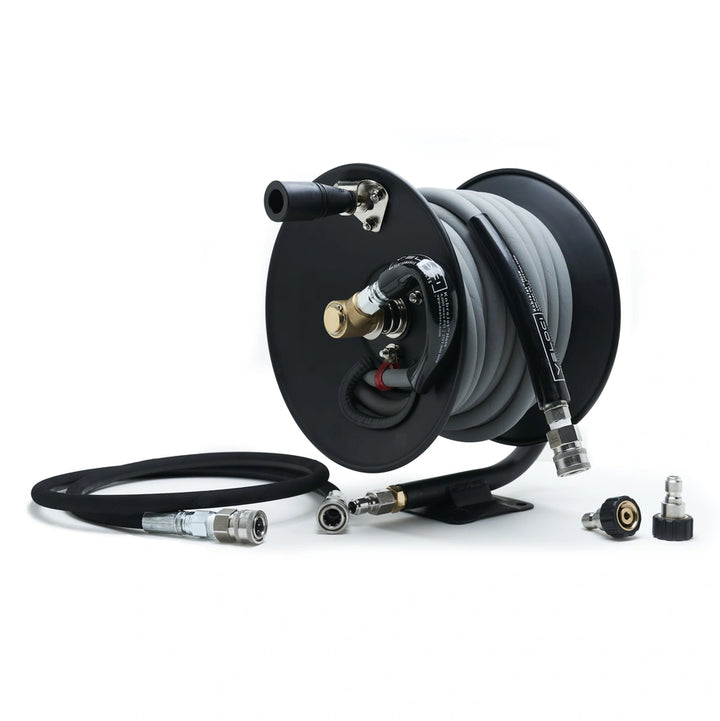

Included

  • 50’ Hose Reel
  • 50’ KobraJet Grey 3/8” 4,000 PSI Non-Marking Hose
  • 5’ Whip Line 3/8" stainless steel couplers installed
  • 3/8” stainless steel plug installed on inlet of hose reel
  • 3/8” stainless steel coupler installed on outlet of hose
  • Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
  • Teflon Tape
  • Installation and mounting instructions

Reel Dimensions

Measurement 50' 100' 150' 200'
Height 12.5" 12.5" 16.5" 16.5"
Total Width 11" 15" 15" 20.5"
Depth 10.5" 10.5 13.5" 13.5"
Wall Width 7.5" 12" 10" 16"
Core Width 4.375" 8.75" 6.375" 12.5"
Core Diameter 4.25" 4.25" 5.5" 5.5"
Inlet 3/8" Male NPT 3/8" Male NPT 3/8" Male NPT- 9" Pigtail 3/8" Male NPT- 9" Pigtail
Base to Center of Core 7.5" 7.5" 10" 10"
Mounting Bracket 4 holes-square - 3.375" to center 4 holes-square - 3.375" to center 4 slots-4.25" W x 3.375" D 4 slots-4.25" W x 3.375" D
Hole Diameter 0.375" Circle 0.375" Circle 0.375" x 2.2" Slot 0.375" x 2.2" Slot
Pin Lock Yes Yes Yes Yes
Mounting Hardware None None None None
