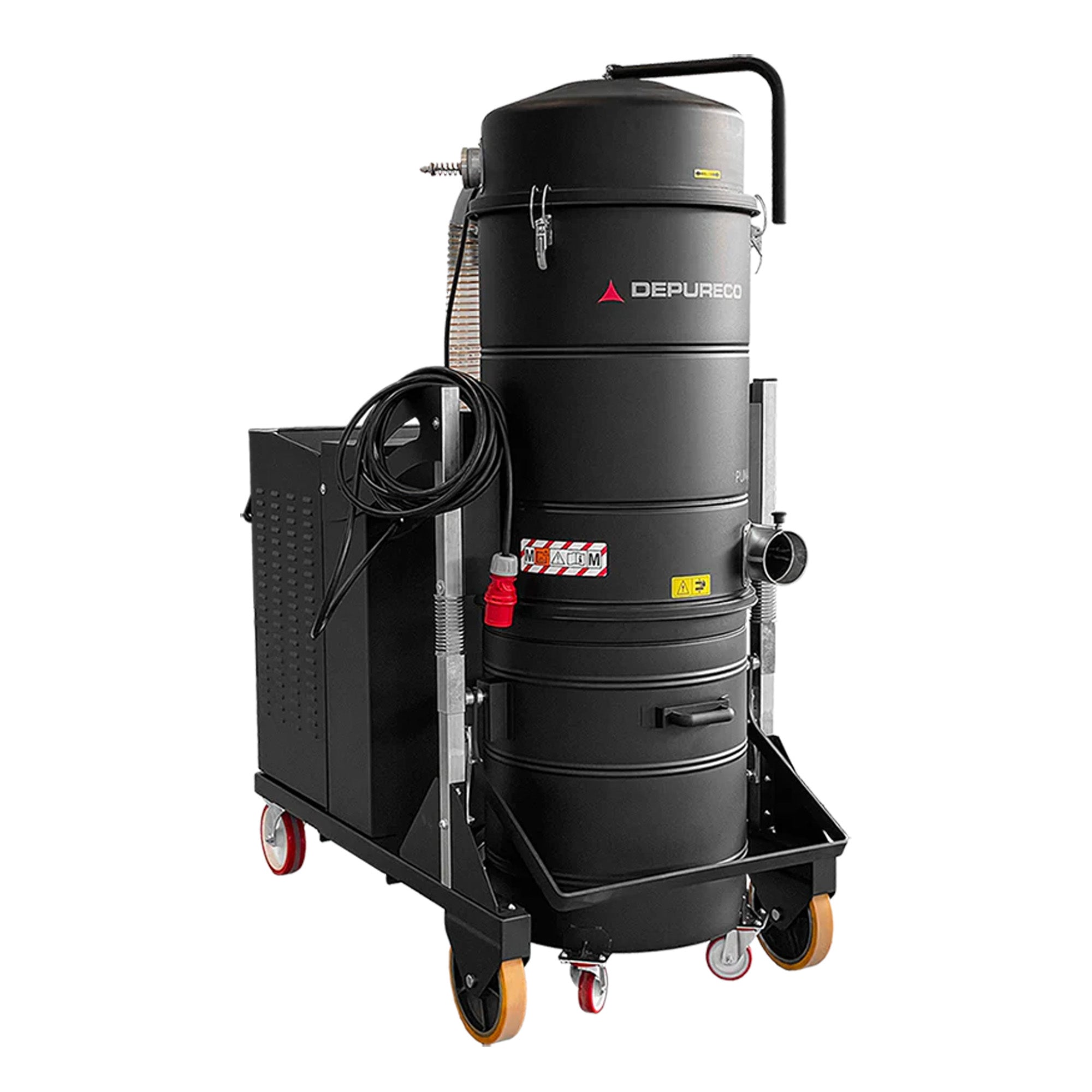

Depureco Puma 15 S Heavy Three-Phase Industrial Vacuum Cleaner

SKU: Puma 15 S
FAST PREE SHIPPING

On Orders Over $99

BEST PRICE GUARANTEE
SECURE PAYMENT

Visa, Mastercard, Paypal


The PUMA 15 S is an industrial vacuum from Depureco’s medium-large power three-phase range. It has a high airflow high quality Made in Italy double-stage side channel blower in parallel that ensures a maximum continuous vacuum of 440 mBar. The vacuum breaker safety valve is installed as standard. The tangential intake with the sturdy cyclone welded inside the filter chamber guarantee excellent efficiency even with the finest dust. The material, entering tangentially, meets the cyclone and due to the friction generated, loses speed and falls directly into the container. This system is extremely useful to protect the filter from the vacuumed material. The filter is in Class M high grammage polyester (certified by BIA Berufsgenossenschaftliches Institut für Arbeitssicherheit) with a 1µ filtration efficiency. The filter can be customized to a specific application. For this vacuum cleaner, anti-static filters are available to prevent electrostatic charges, in NOMEX to withstand high temperatures (up to 250°C), Teflon coated to work with wet materials and with PTFE nanotechnology treatment to work with the most difficult dust.

The PUMA 15 S industrial vacuum is equipped with a manual filter cleaning system. The filter can be shaken easily and effectively with the lever on the top of the vacuum. The vacuum can be configured with an automatic filter cleaning system on demand. Namely, there is a choice between jet pulse cleaning, electro-pneumatic piston filter shaker, or electrical filter shaker. Depureco’s PUMA 15 S model is equipped with a handy and sturdy 175 L container, fitted with a release system, which allows the operator to collect the vacuumed material and conveniently dispose of it. To facilitate handling the container, there are 4 castor wheels mounted on reinforced supports so that it can be handled easily even when it contains several kg of material. A kit is available on-demand for handling and unloading the container with a forklift.

Power: 11.0kW

Surface: 45.000cm2

Capacity: 175 L



ENGINE / MOTOR:

Suction type Side Channel Blower
Voltage 400 V
IP 55
Maximum vacuum 480 mBar
Vacuum in continuous run 440 mBar
Maximum air flow 550 m3/h
Safety valve Included
Noise level – (EN ISO 3744) 74 dB(A)
Frequency 50/60 Hz
Power 15.0 HP
Insulation class F



PRIMARY FILTER:

Type  Star Filter
Class EN 60335-2-69 M Class
Media Polyester
Filter cleaning Manual Shaker



MACHINE:

Inlet 100 Ø mm
Dimensions 850 x 1550 mm
Height 1980 mm
Weight 363 Kg
Conic cyclone Included
