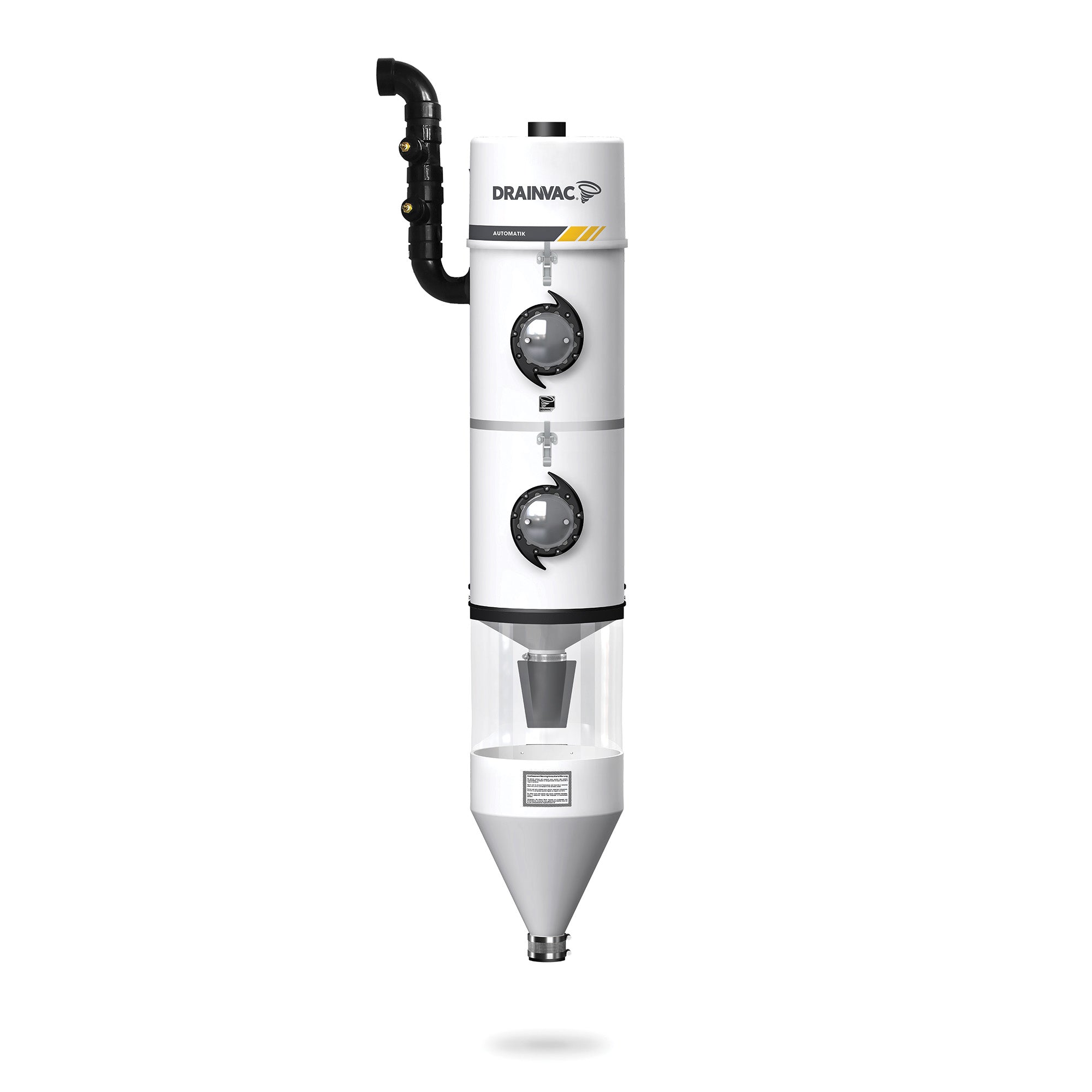

Large capacity canister with 2 portholes
Can be paired with 6 and 11 HP motors
Water inlet required
Lifetime warranty casing
Technical Data Values
| IN: |
76 mm |
| OUT: |
76 mm |
| Capacity: |
54.5 L |
| Height: |
203.2 cm |
| Diameter: |
38 cm |
| Weight: |
38.5 Kg |
| Voltage: |
220-240V |
| Reset: |
6 A |

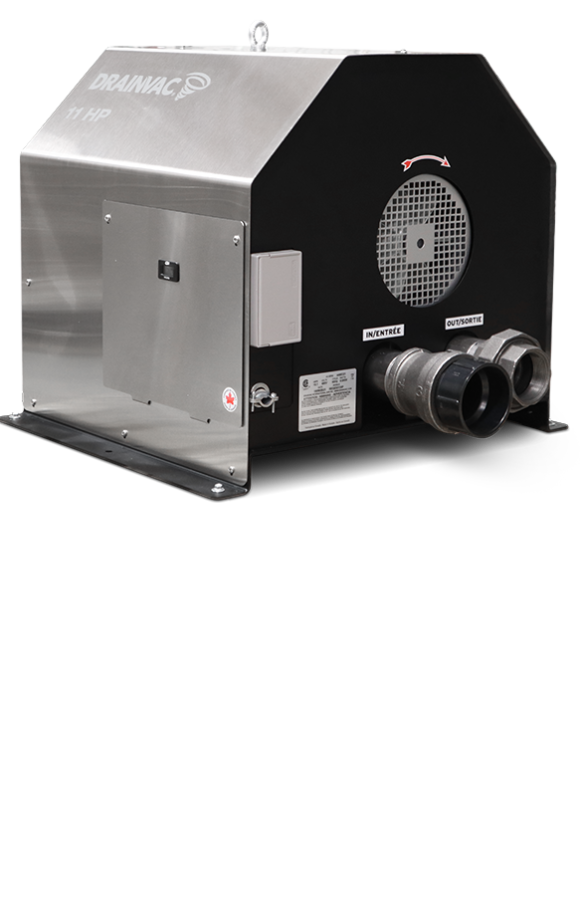

REGEN11HP Central Vacuum Motor
Regen-type motor that produces 11 HP of vacuum power. Can be used by 1 to 2 users simultaneously and can withstand long consecutive hours. The motor requires minimum maintenance and is covered by a stainless steel housing which includes an hour meter.
Features
- Stainless steel casing
- 3" (76 mm) air inlet and outlet
- 20,000 hours of usage before any maintenance is required
Technical Specifications
| Frequency: |
60 Hz/50 Hz
|
| Power: |
8 kW (11 HP) |
| Voltage: |
690-725 400-500 |
| Amps: |
8.8 15.1 |
| CFM: |
365 (620 m3/h) |
| Vacuum: |
141 H2O (-350 mbar) |
| Size: |
57.4 cm x 68 cm x 57.4 cm |
